Question: Do we need to calculate the resistivity of wires if using massive of them? For example, if we are using a big and thickness wire/ 1000 jumper wires/ long wires in a installation.
The question that came from the processes of my homework: I saw someone use resistors on the FSR sensors, but I tried to remove resistors that connected to the FSR because I was thinking it might affect the function and it still works. So do we need to always connect resistors to the sensors?
For the reading 2 of Norman, Emotional Design, Chapter 1, “Attractive Things Work Better”
I do strongly and sympathetic agree with his argument about an attractive design (with useful functions) for objects are more letting the things work better.
some notes: V = I* R
I = V / R
R = V / I
connection in series: R total = R1 + R2 +....+Rn
connection in parallel: 1 / R total = 1 / R1 + 1 / R2 +...+ 1 / Rn
Making an application with switch and led.
I am always liking to use FSR pressure sensors. I want to try lighting a led with FSR sensor that I have.

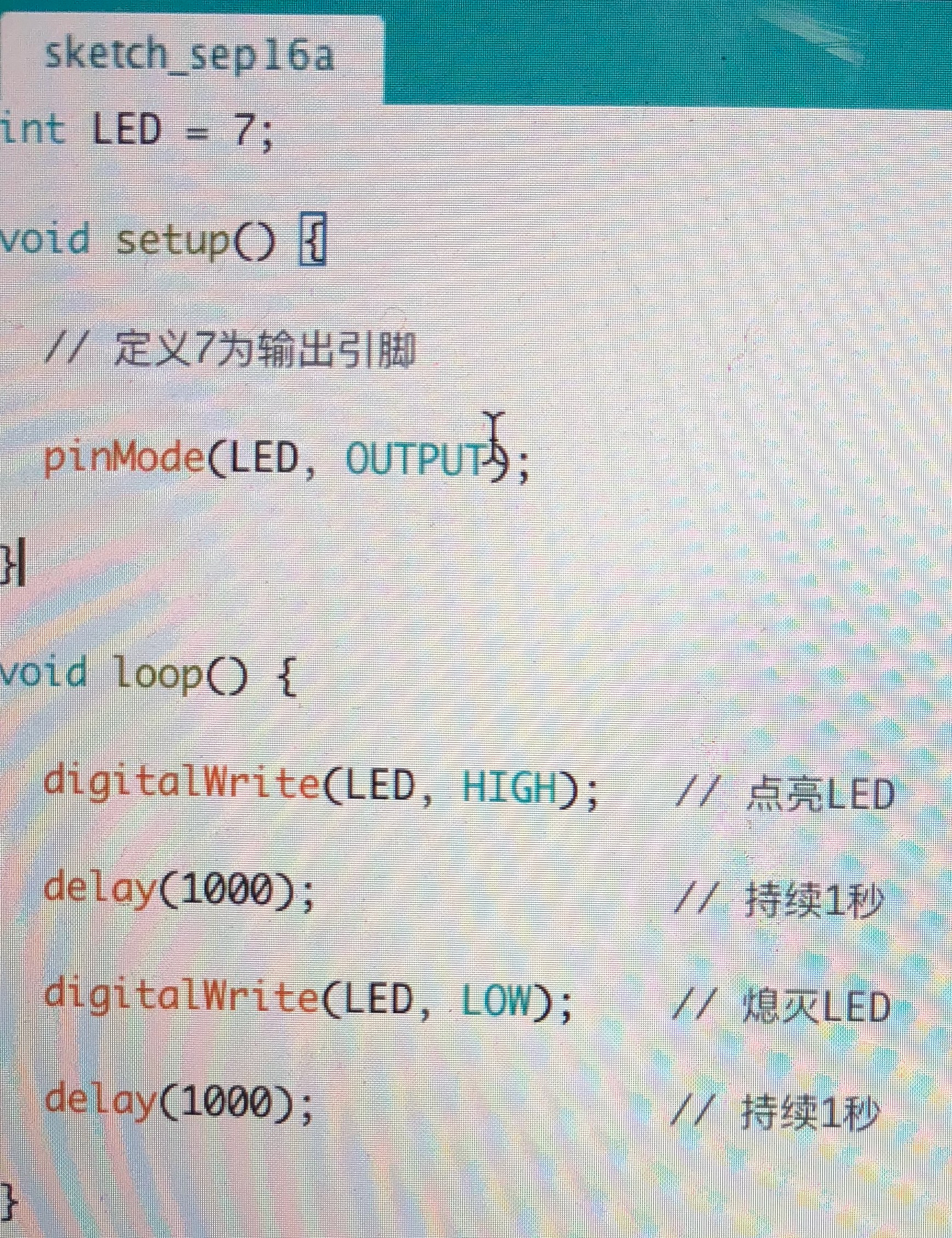

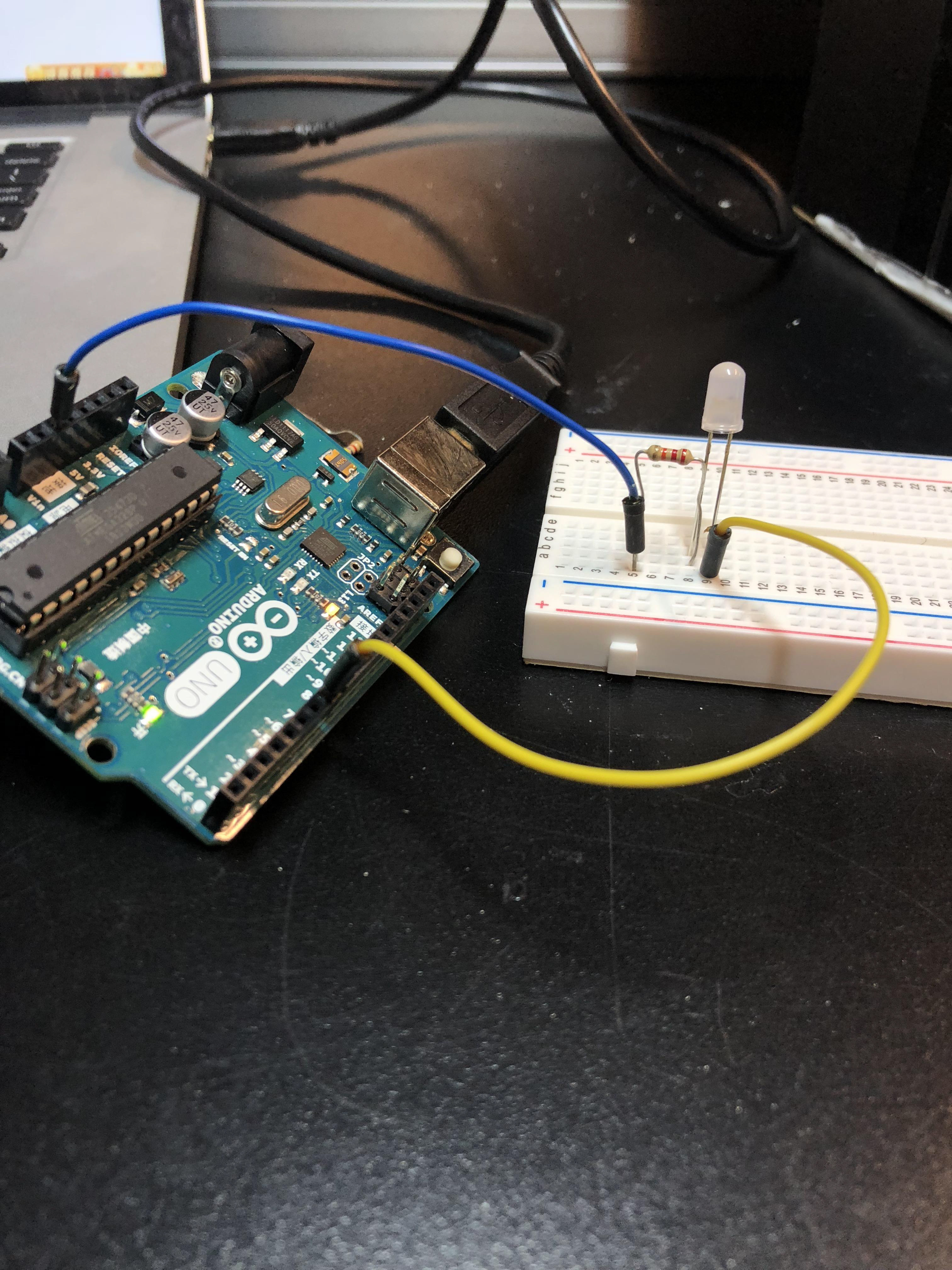

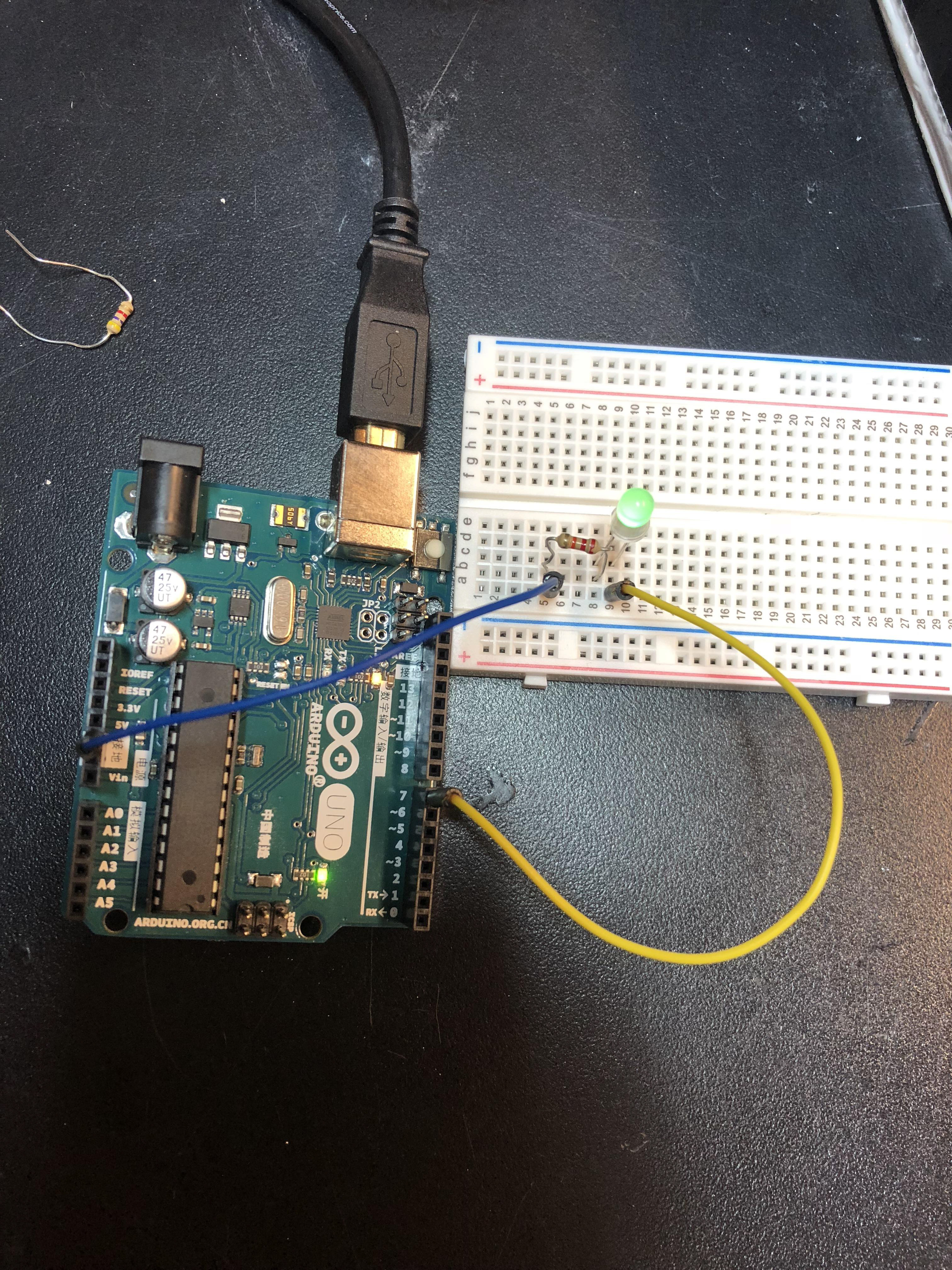

Firstly, I tried to just connect the Arduino and led just for lighting it up, then I followed the video to write the code into the Arduino for controlling the led.
This is the code that wrote into the Uno.
Then I prepared for a FSR switch in a circuit!

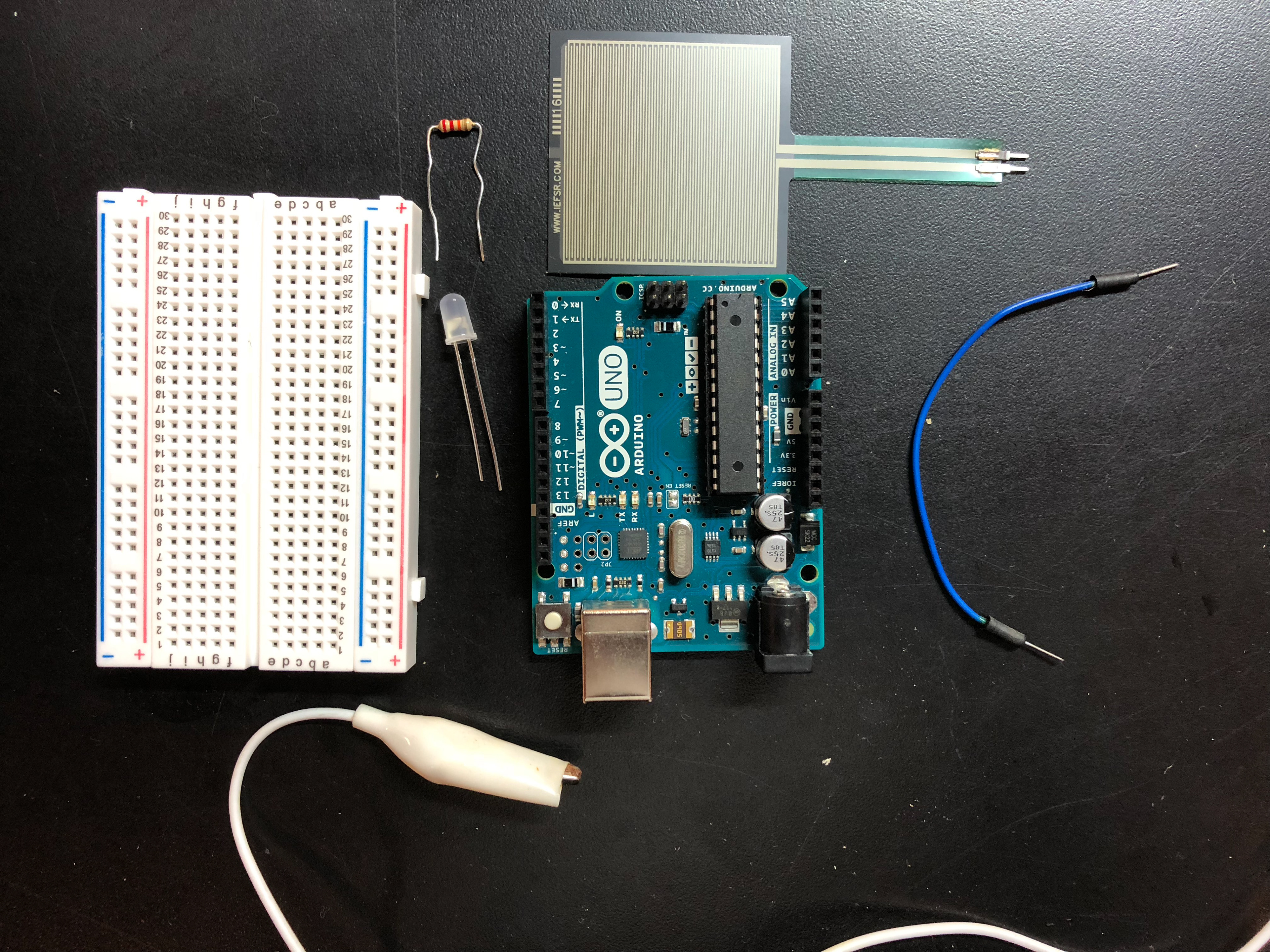

Here are the materials that I used in that application:
· Arduino uno
· Breadboard
· Force sensitive resistor
· LED
· 220 Ohm resistor

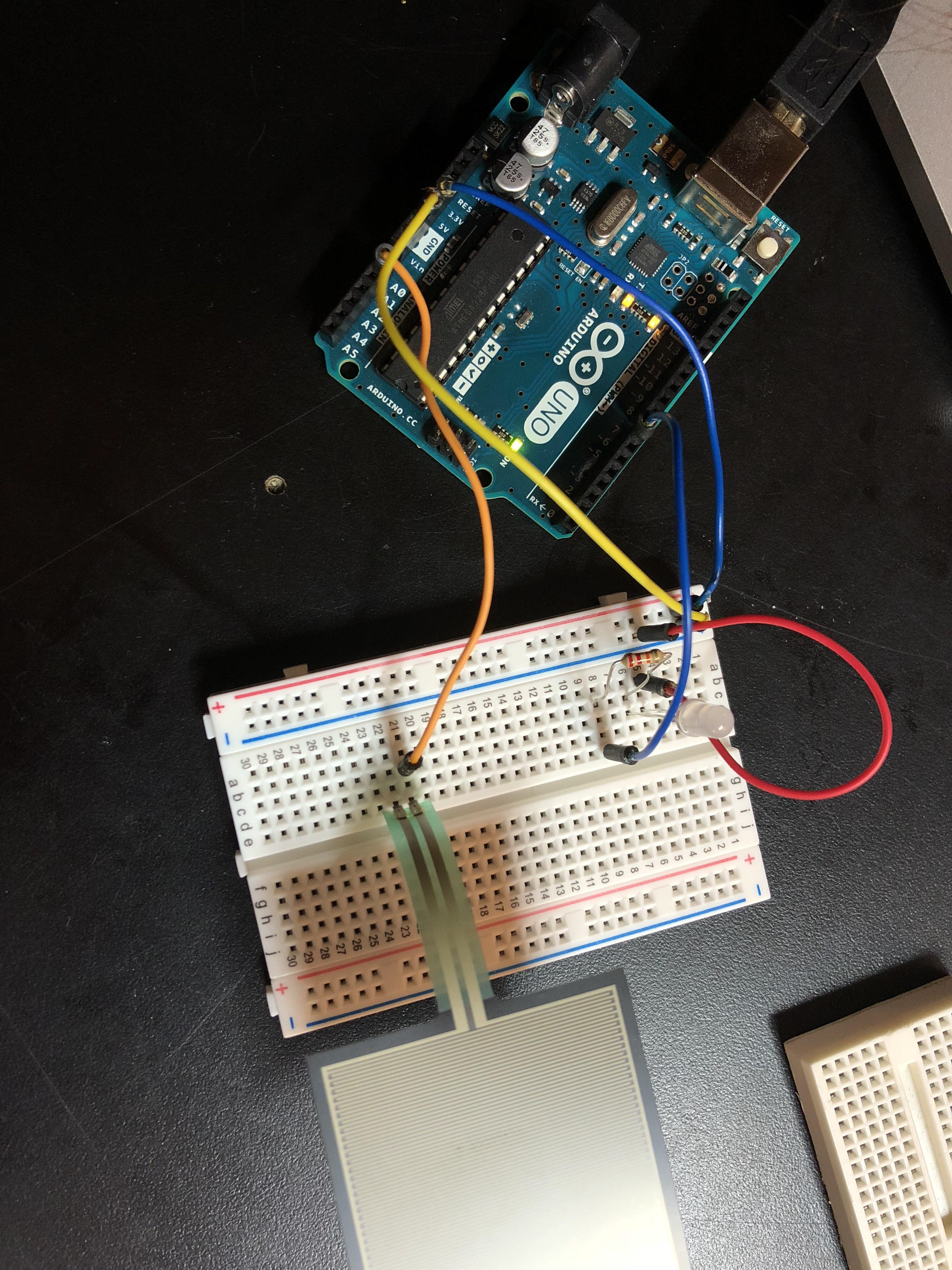

Connecting them into a circuit.
// for FSR led
int ledPin = 7;
int sensorPin = A0;
int value;
int sensorPin = A0;
int value;
void setup(){
pinMode(ledPin, OUTPUT);
Serial.begin(9600);
}
void loop(){
value = analogRead(sensorPin);
Serial.println(value);
value = map(value, 0, 1023, 0, 255);
analogWrite(ledPin, value);
delay(100);
}
value = analogRead(sensorPin);
Serial.println(value);
value = map(value, 0, 1023, 0, 255);
analogWrite(ledPin, value);
delay(100);
}
Then tried to light it up when I press the FSR pressure sensor!
